RPS 3HP 35RPS30, Up to 375ft Head, 12 to 48GPM, Submersible Pump End + 3HP 220V Motor + Starter Box

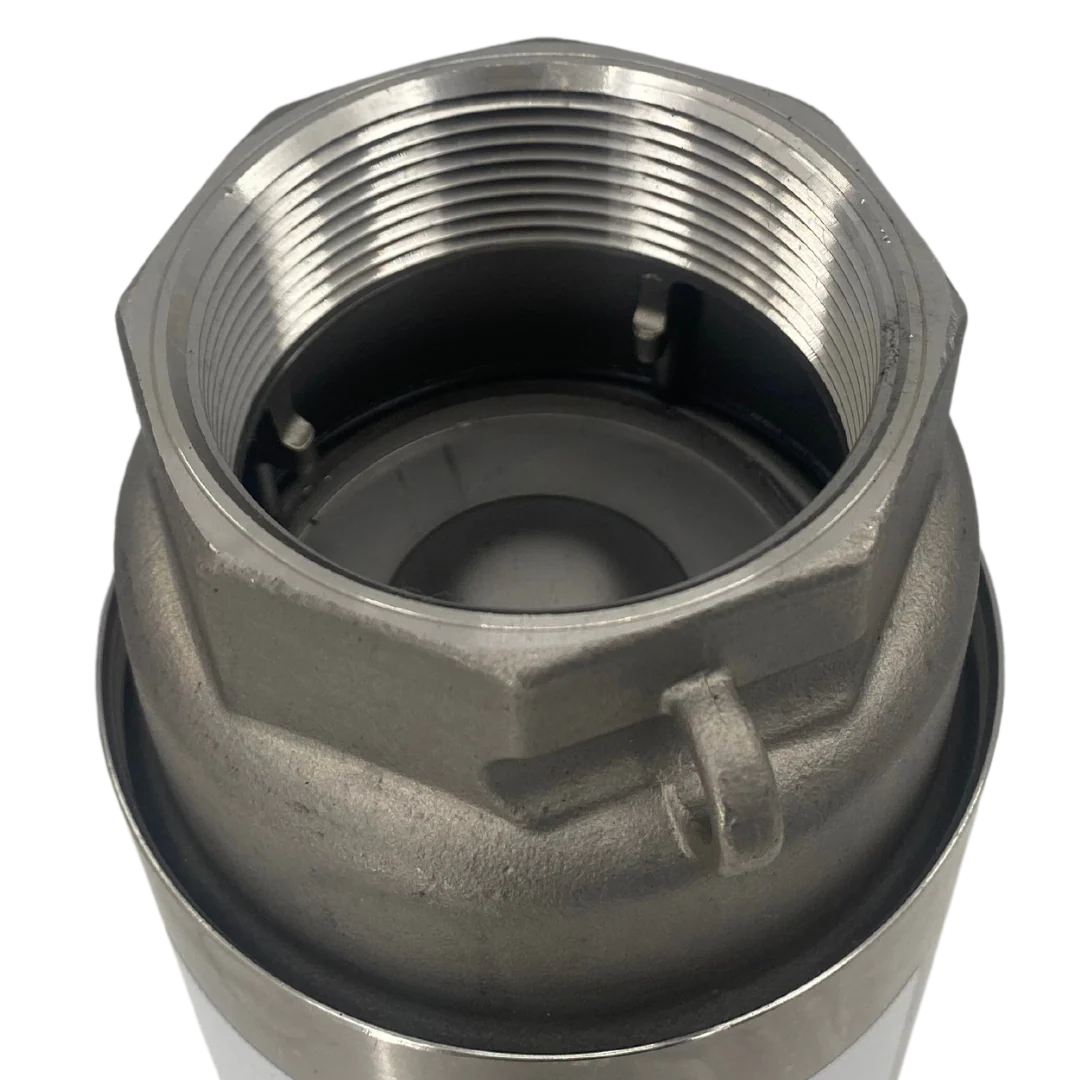

35RPS series pumps are designed for low flow applications of 48 GPM or under. They can be self-installed or placed using a local installer. At 225 feet of head the 35RPS30 will pump 38 GPM! 2" FNPT Outlet.

This RPS pump uses a hearty 3 Wire Single Phase 3HP Motor and 3.85″ diameter pump end. The Outlet includes a built in check valve, most people add on an additional external check valve as well. The most efficient brushless motors mean no replacement of carbon brushes and years of smooth, reliable performance. Impellers are made of a composite material resistant to abrasion and chemical damage. Encapsulated winding for superior short protection. The entire body is made of corrosion resistant 304 stainless steel, and compliant to all drinking water standards. Includes a starter box matched to the pump HP with starting capacitor.

✅  NSF Drinking Water and UL Compliant

Total Head	Gallons Per Minute (GPM)
No head	46
25 feet	46
50 feet	46
75 feet	46
100 feet	46
125 feet	44
150 feet	44
175 feet	42
200 feet	40
225 feet	38
250 feet	34
275 feet	32
300 feet	28
325 feet	24
350 feet	18
375 feet	12
Above 375 feet	Size Up for Optimal Performance



Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.

10 PSI = 23 feet of head

20 PSI = 46 feet of head

30 PSI = 70 feet of head

40 PSI = 90 feet of head

50 PSI = 115 feet of head

60 PSI = 140 feet of head

Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!
