RPS 2HP 25RPS20, Up to 400ft Head, 14 to 31GPM, Deep Well Submersible Pump End + 2HP 220V Motor + Starter Box



25RPS series pumps are designed for flow applications of 31 GPM or under. They can be self-installed or placed using a local installer. At 300 feet of head the 25RPS20 will pump 25.5 GPM! 1.25" FNPT Outlet.

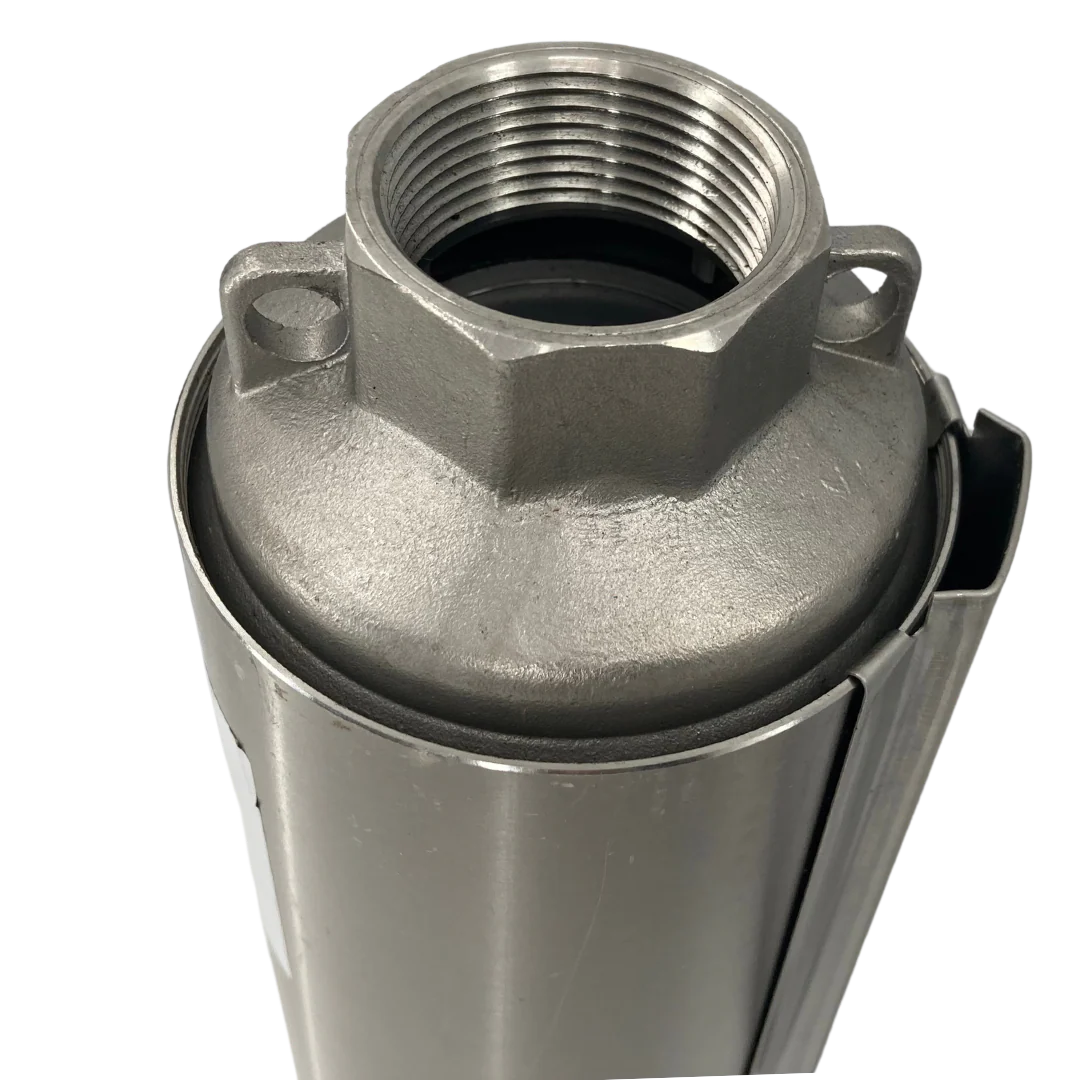

This RPS pump uses a hearty 3 Wire Single Phase 2HP Motor and 3.85″ diameter pump end. The Outlet includes a built in check valve, most people add on an additional external check valve as well. The most efficient brushless motors mean no replacement of carbon brushes and years of smooth, reliable performance. Impellers are made of a composite material resistant to abrasion and chemical damage. Encapsulated winding for superior short protection. The entire body is made of corrosion resistant 304 stainless steel, and compliant to all drinking water standards. Includes a starter box matched to the pump HP with starting capacitor.

If you're working with a deeper well setup, such as a 400ft deep well pump the 25RPS20 offers dependable performance and DIY-friendly installation.

✅  NSF Drinking Water and UL Compliant

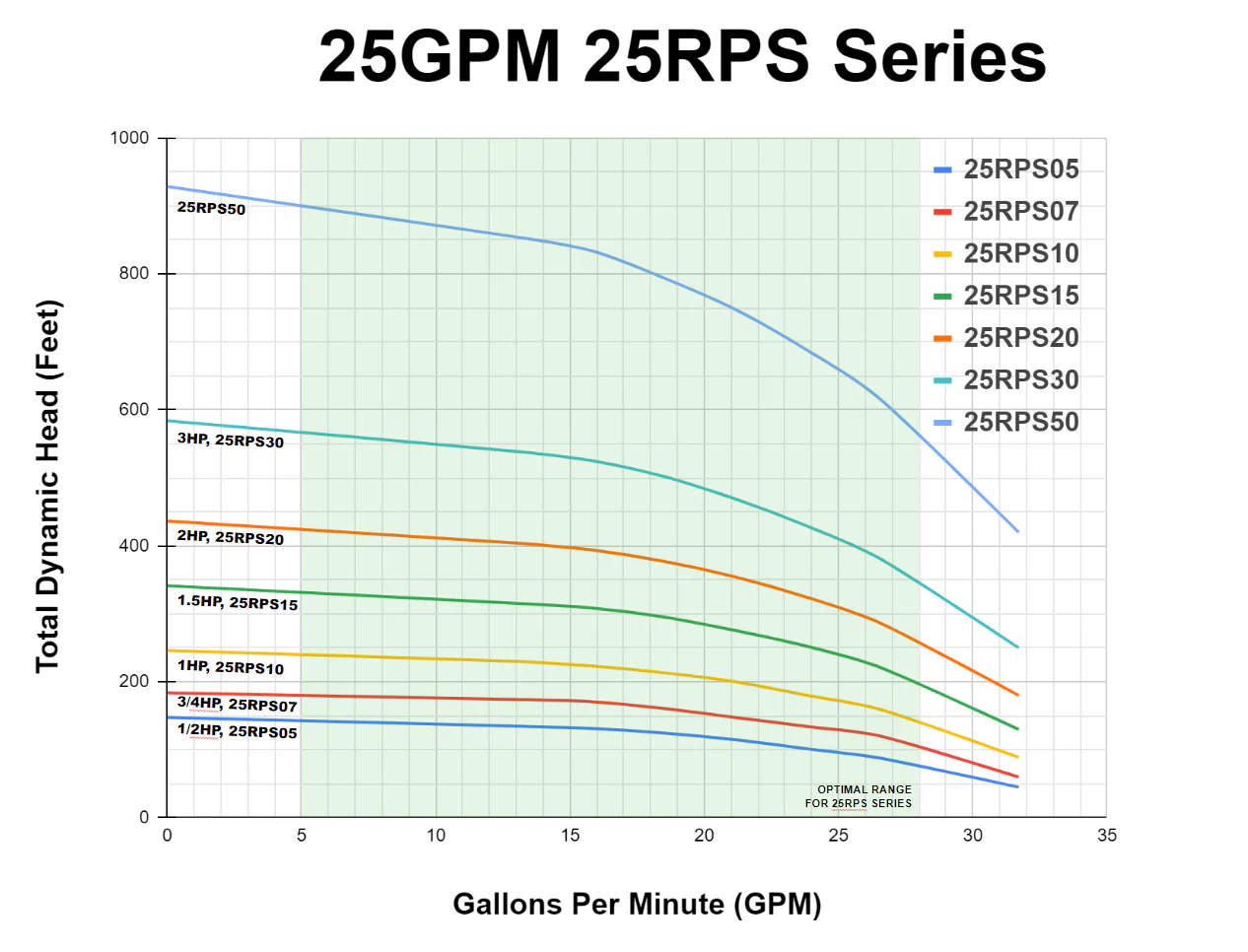

Total Head	Gallons Per Minute (GPM)
No head	31
25 feet	31
50 feet	31
100 feet	31
125 feet	31
150 feet	31
175 feet	31
200 feet	30.5
250 feet	28
300 feet	25.5
350 feet	21
400 feet	14
Above 400 feet	Size Up for Optimal Performance



Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.

10 PSI = 23 feet of head

20 PSI = 46 feet of head

30 PSI = 70 feet of head

40 PSI = 90 feet of head

50 PSI = 115 feet of head

60 PSI = 140 feet of head

Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!

Need more water? Check out the other 25RPS Series Models!
