220V 1.5HP 55RPS15, Up to 100ft Head, 41 to 75 GPM, Deep Well Submersible Pump End + 1.5HP 220V 2 Wire Motor

220V 55RPS series pumps are designed for flow applications of 75 GPM or under. They can be self-installed or placed using a local installer. At 100 feet of head the 55RPS15 will pump 41 GPM!

This RPS pump uses a hearty 2 Wire Single Phase 1.5HP 220V Motor and 3.85″ diameter pump end. The Outlet includes a built in check valve, most people add on an additional external check valve as well. The most efficient brushless motors mean no replacement of carbon brushes and years of smooth, reliable performance. Impellers are made of a composite material resistant to abrasion and chemical damage. Encapsulated winding for superior short protection. The entire body is made of corrosion resistant 304 stainless steel, and compliant to all drinking water standards.

This pump does not include an external starter box, the starting capacitor is built directly into the motor housing. You'll wire directly from the pump to your breaker or switch.

• 41-75 Gallons per Minute



• The 2-wire 55RPS15 includes pump end + motor + splice kit

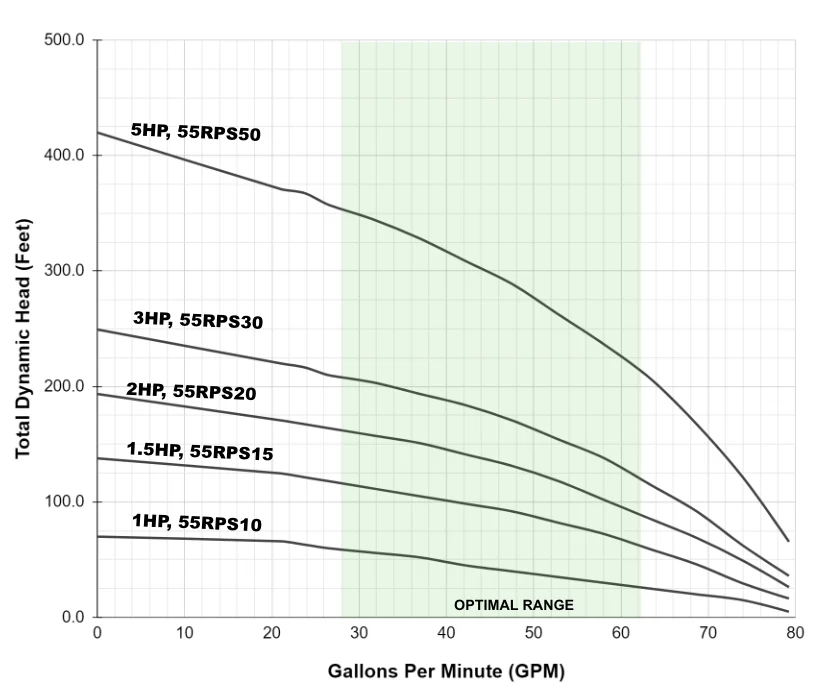

Total Head	Gallons Per Minute (GPM)
No Head	75
25 feet	75
50 feet	67
75 feet	56
100 feet	41
Above 100 feet	Size Up for Optimal Performance



Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.

10 PSI = 23 feet of head

20 PSI = 46 feet of head

30 PSI = 70 feet of head

40 PSI = 90 feet of head

50 PSI = 115 feet of head

60 PSI = 140 feet of head

Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!
