RPS 3HP 10RPS30, Up to 800ft Head, 7 to 18GPM, Deep Well Submersible Pump End + 3HP 220V Motor + Starter Box

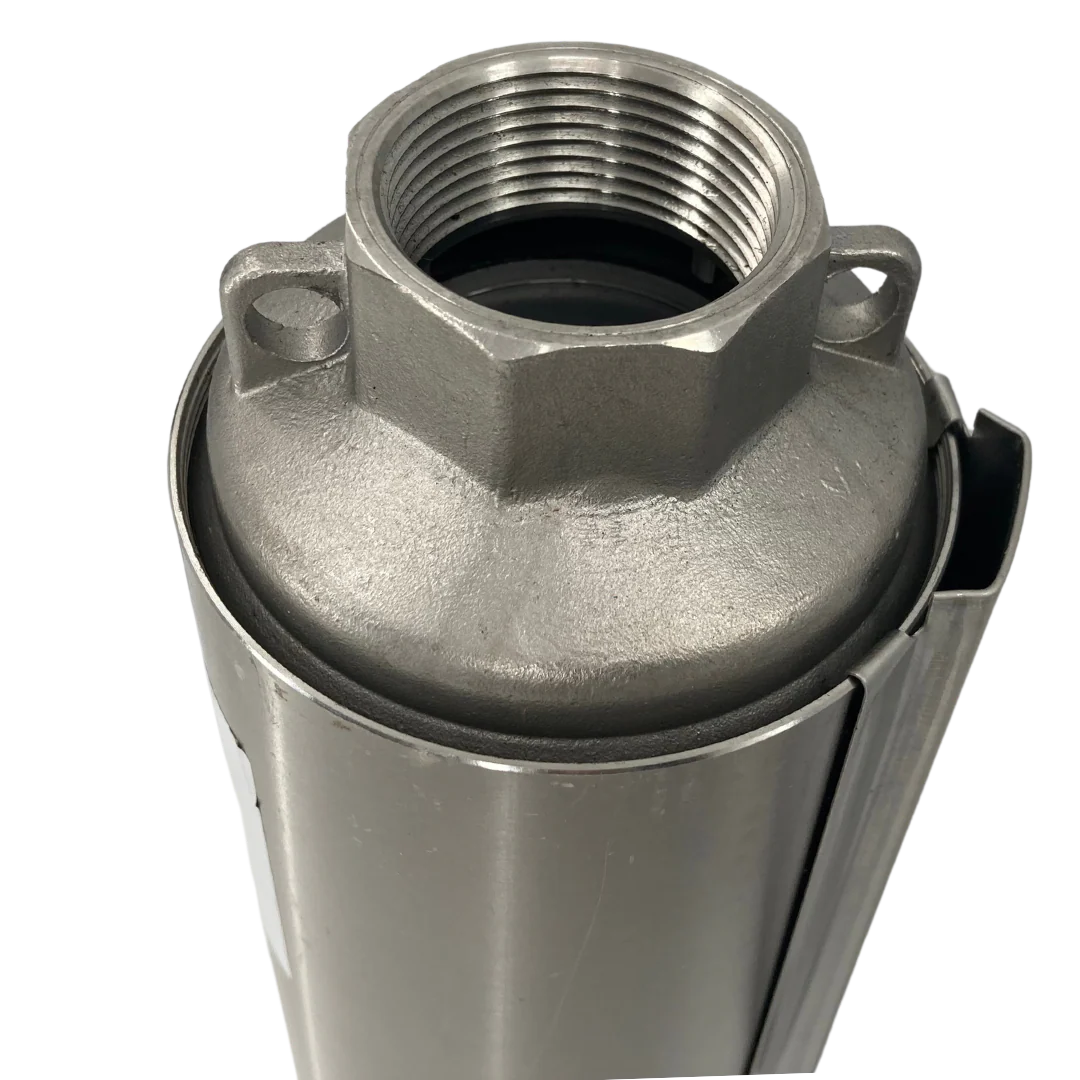

10RPS series pumps are designed for low flow applications of 18 GPM or under. They can be self-installed or placed using a local installer. At 600 feet of head the 10RPS30 will pump 12 GPM! 1.25" FNPT Outlet.

This RPS pump uses a hearty 3 Wire Single Phase 3HP Motor and 3.85″ diameter pump end. The Outlet includes a built in check valve, most people add on an additional external check valve as well. The most efficient brushless motors mean no replacement of carbon brushes and years of smooth, reliable performance. Impellers are made of a composite material resistant to abrasion and chemical damage. Encapsulated winding for superior short protection. The entire body is made of corrosion resistant 304 stainless steel, and compliant to all drinking water standards. Includes a starter box matched to the pump HP with starting capacitor.

✅  NSF Drinking Water and UL Compliant

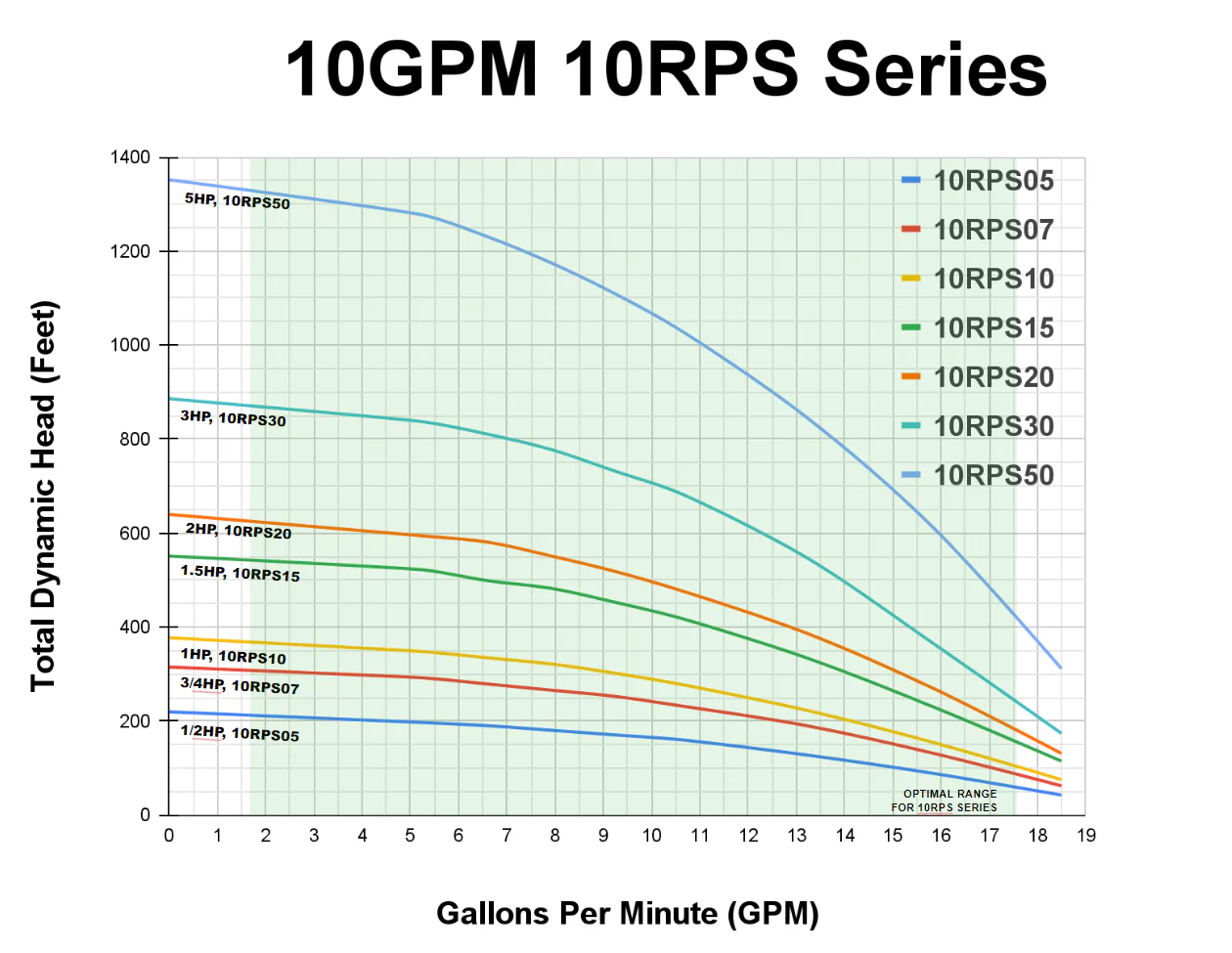

Total Head	Gallons Per Minute (GPM)
No head	18
50 feet	18
100 feet	18
150 feet	18
200 feet	18
250 feet	17.5
300 feet	16.5
350 feet	16
400 feet	15.5
450 feet	14.5
500 feet	14
550 feet	13
600 feet	12
650 feet	11
700 feet	10
750 feet	8.5
800 feet	7
Above 800 feet	Size Up for Optimal Performance



Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.

10 PSI = 23 feet of head

20 PSI = 46 feet of head

30 PSI = 70 feet of head

40 PSI = 90 feet of head

50 PSI = 115 feet of head

60 PSI = 140 feet of head

Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!
