05RPS20-S Pump End, 2.6-6.6GPM
The Steel Pro Series brings stainless steel — the industry gold standard for long-term durability — into reach for everyday families. Once reserved for elite industry projects, these pump ends are crafted with premium stainless impellers that deliver higher structural integrity, better efficiency under load, and excellent resistance to dissolved minerals, heat, and abrasion.
Choose Steel Pro when reliability isn’t just important, it’s non-negotiable. It’s an investment in peace of mind: fewer service calls, longer pump life, and steady performance for your household well.

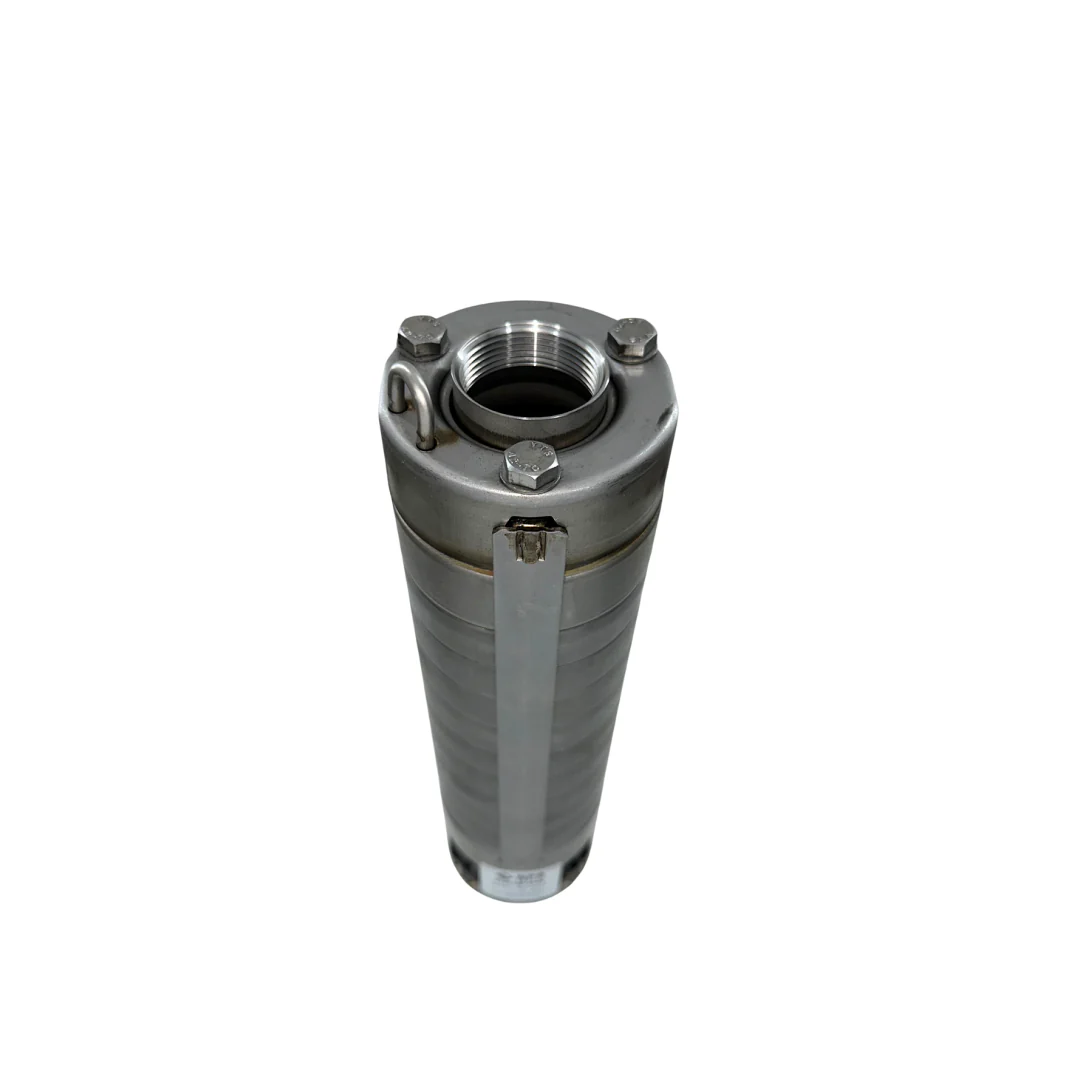

A 2.6-6.6GPM Pump End, made from hardy stainless steel construction. Paired with a 2HP motor end, the 05RPS20-S can produce up to 2.6 GPM at 950 ft of head!
Compatible with motors from brands such as Franklin Electric, Goulds, Grundfos, Pentair and Berkley.
NSF Drinking Water and UL Compliant

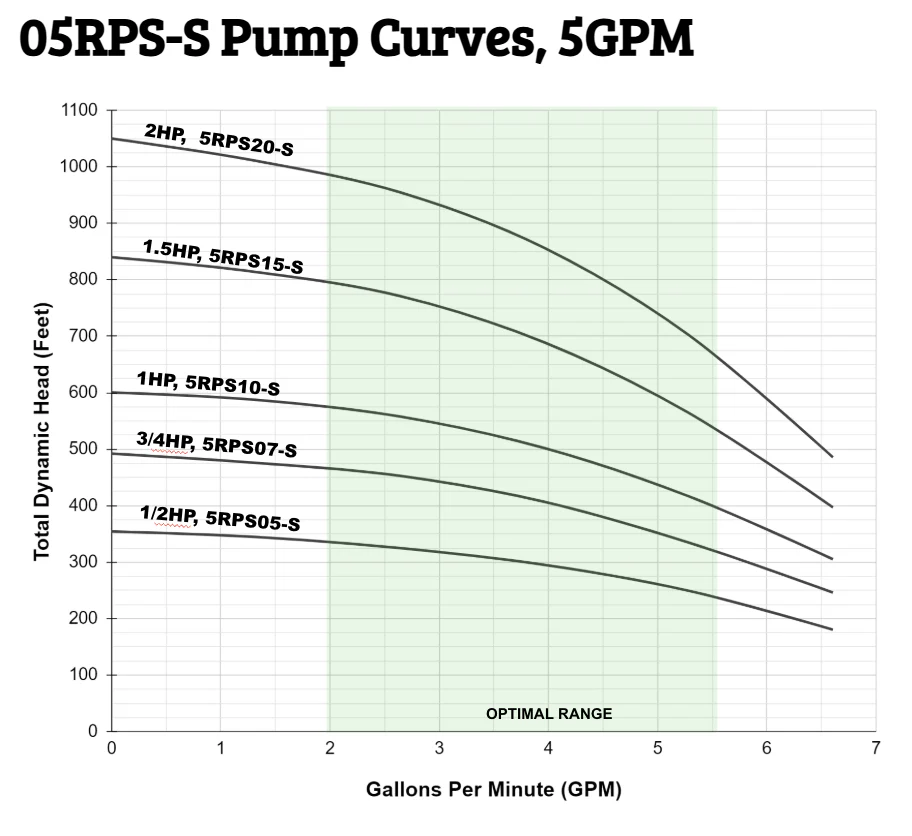

| Total Head | Gallons Per Minute (GPM) |
| No head | 6.6 |
| 50 feet | 6.6 |
| 100 feet | 6.6 |
| 150 feet | 6.6 |
| 200 feet | 6.6 |
| 250 feet | 6.6 |
| 300 feet | 6.6 |
| 350 feet | 6.6 |
| 400 feet | 6.6 |
| 450 feet | 6.6 |
| 500 feet | 6.6 |
| 550 feet | 6.3 |
| 600 feet | 5.9 |
| 650 feet | 5.6 |
| 700 feet | 5.3 |
| 750 feet | 4.9 |
| 800 feet | 4.5 |
| 850 feet | 4 |
| 900 feet | 3.4 |
| 950 feet | 2.6 |
| Above 950 feet | Size Up for Optimal Performance |
Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.
10 PSI = 23 feet of head
20 PSI = 46 feet of head
30 PSI = 70 feet of head
40 PSI = 90 feet of head
50 PSI = 115 feet of head
60 PSI = 140 feet of head
Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!
Need more water? Check out the other 05RPS Series Models!
Original: $1,359.99
-65%$1,359.99
$476.00
Description
The Steel Pro Series brings stainless steel — the industry gold standard for long-term durability — into reach for everyday families. Once reserved for elite industry projects, these pump ends are crafted with premium stainless impellers that deliver higher structural integrity, better efficiency under load, and excellent resistance to dissolved minerals, heat, and abrasion.
Choose Steel Pro when reliability isn’t just important, it’s non-negotiable. It’s an investment in peace of mind: fewer service calls, longer pump life, and steady performance for your household well.
A 2.6-6.6GPM Pump End, made from hardy stainless steel construction. Paired with a 2HP motor end, the 05RPS20-S can produce up to 2.6 GPM at 950 ft of head!
Compatible with motors from brands such as Franklin Electric, Goulds, Grundfos, Pentair and Berkley.
NSF Drinking Water and UL Compliant
| Total Head | Gallons Per Minute (GPM) |
| No head | 6.6 |
| 50 feet | 6.6 |
| 100 feet | 6.6 |
| 150 feet | 6.6 |
| 200 feet | 6.6 |
| 250 feet | 6.6 |
| 300 feet | 6.6 |
| 350 feet | 6.6 |
| 400 feet | 6.6 |
| 450 feet | 6.6 |
| 500 feet | 6.6 |
| 550 feet | 6.3 |
| 600 feet | 5.9 |
| 650 feet | 5.6 |
| 700 feet | 5.3 |
| 750 feet | 4.9 |
| 800 feet | 4.5 |
| 850 feet | 4 |
| 900 feet | 3.4 |
| 950 feet | 2.6 |
| Above 950 feet | Size Up for Optimal Performance |
Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.
10 PSI = 23 feet of head
20 PSI = 46 feet of head
30 PSI = 70 feet of head
40 PSI = 90 feet of head
50 PSI = 115 feet of head
60 PSI = 140 feet of head
Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!
Need more water? Check out the other 05RPS Series Models!
